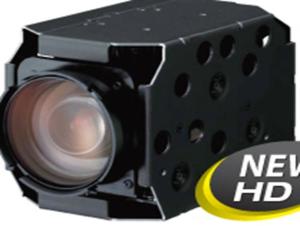

Hitachi DI-SC123 20X Defog 720P HD Color Module Camera -- www.iselectgift.com

Place of Origin : japan

Brand Name : Hitachi

Model Number : DI-SC123

Type : Digital Camera

Style : Box Camera

Sensor : CMOS

Technology : Pan / Tilt / Zoom

MOQ : 1pcs

Delivery Time : 3days

Payment Terms : T/T, paypal

Supply Ability : 56pcs

Special Features : HD CMOS Camera

Contact Now

Hitachi DI-SC123 20X Defog 720P HD Color Module Camera -- www.iselectgift.com

* HD 720P
* 20x optical zoom
* Minimum illumination 0.3 lx
* The night vision function
* Automatically through the fog(Defog)
* Automatic light inhibition

Specification:

Model DI-SC123
sensor
image size 1/3" CMOS
Effective Pixels 1305(H)* 1049(V) 1.37M
Output pixels, frame rate
 1280(H)* 720(V)/30P,25P
Lens
ZOOM 30x Optical Zoom
f-value 4.7-94mm
Horizontal View Angle 62.9°(W)*- 2.2°(T)
F-value F1.4(W)-F4.6(T)

FOCUS

Video Spotlight

 Automatic * / manual (far/near)
minimum distance 0.01m(W)*～3m(T)
IR-cut Automatic * (Pro) AER + * / AER)/manual
DSP
DSP DSP10
Serial interface Method: speed RS-232C : 57.6k / 38.4k / 19.2k / 9.6k / 4.8k bps
command protocol EAP*/AFP
RS-232C logic level 3.3V
Function DSS Yes (WDR OFF)
WDR OFF/WDR+Contrast offset/AD-WDR+Contrast offset/Contrast offset
Image Freeze OFF*/ON
Mirror OFF*/ON
Flip Vertical OFF*/ON
Rollover OFF*/ON
Privacy masking OFF*/ON [16 zone 3-D(16/1screen)]
activity detector OFF*/ON
behavior tracking OFF*/ON
FNR OFF*/ON
Multi-user setting Yes ( max. 111)
Dynamic eliminate bright spot Yes

Slow AE

 1x - 254x
Automatic light inhibition OFF*/ON
Defog OFF*/ON
Night Vision OFF*/ON
Digital Zoom OFF*/ON(max. 12X)
Electronic Shutter
Auto ProAE(1/30s - 1/30,000s)
Automatic (+ digital slow shutter) ProAE+(1/8s - 1/30,000s)
Manual (shutter priority) 1/1s - 1/30,000s
Aperture
Aperture
Automatic * / manual
BLC OFF*/ON
WB Automatic * / manual

horizontal resolution

 600TVL
minimum illumination
IR-cut ON (1/30s) 0.3lx
IR-cut ON (1/8s) 0.08lx
IR-cut OFF (1/8) 0.01lx
Condition F1.6 (w) , 50IRE
Synchronization mode

internal synchronization
Power (＠25℃)
Power Supply DC 9-12V
supply current 　＠9V
All motor does not work		 220mA(@25℃/2.0W)
supply current＠9V
Focus/zoom motor work		 330mA(@25℃/3.0W)
Max. power supply current (@ 9 v)
Focus/zoom/infrared filter to work		 600mA(@25℃/5.4W)
Video output (digital) YUV422
output interface 36pin FFC
Working temperature (recommended) AF:-10 --- 60°C
MF: 0 --- 60°C
(0 --- 40°C)
Weight About 255g
Size(W×H×D) 50 x 60 x 89.5mm
